Product Description

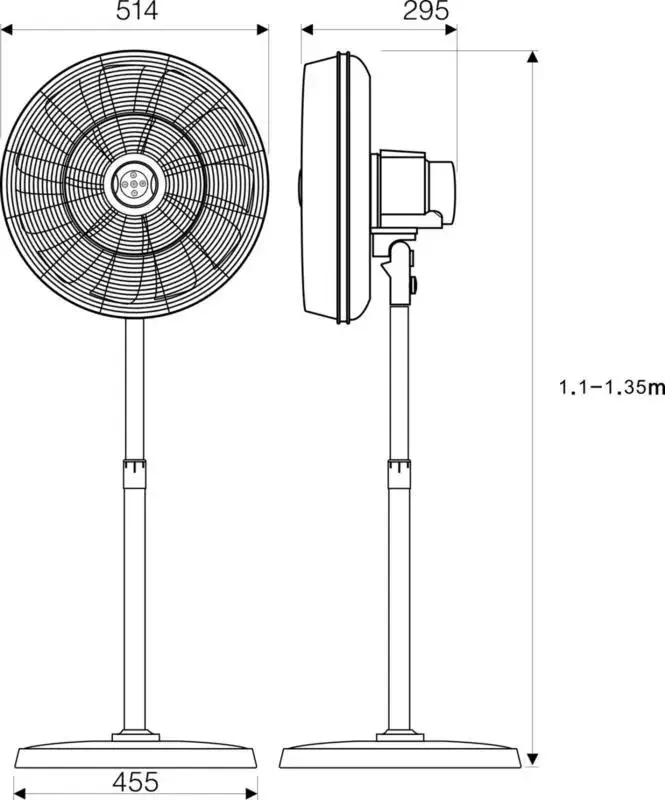

Grille Φ (mm) | 514 |
Blade Φ (mm) | 442 |
Base Φ (mm) | 455 |
Grille + motor Φ (mm) | 295 |
Height adjustable Φ (mm) | 1100-1350 |
Power (W) | 42-90 |
Cable | 3*0.5-0.75mm2 |
No. Of Speeds | 6 + OFF |
Air flow max (m3/hr) | 10023 |
Rev.(RPM) | 850 |
Switch-off timer | 1-9 hours |
Gross Weight (kg) | 11.6 |

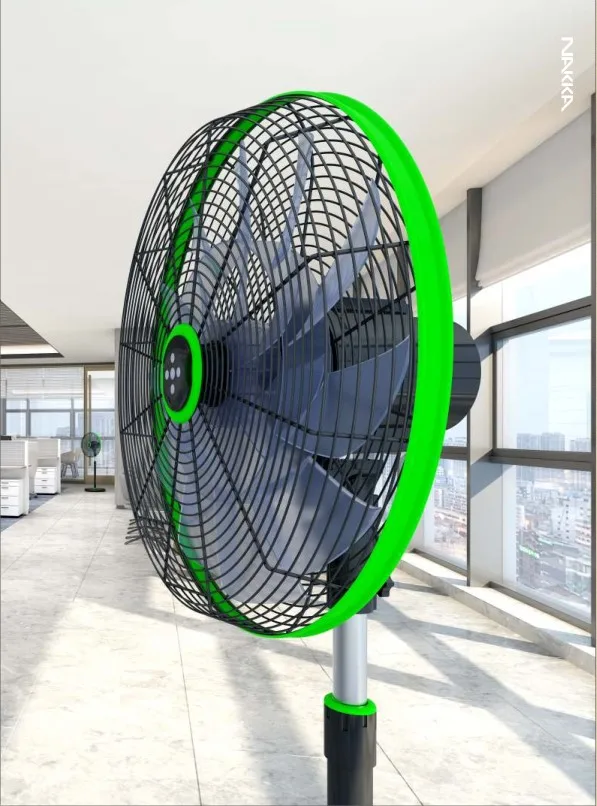

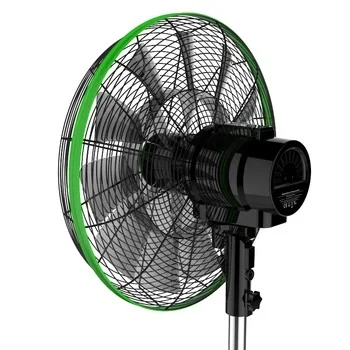

Details Images
Specification

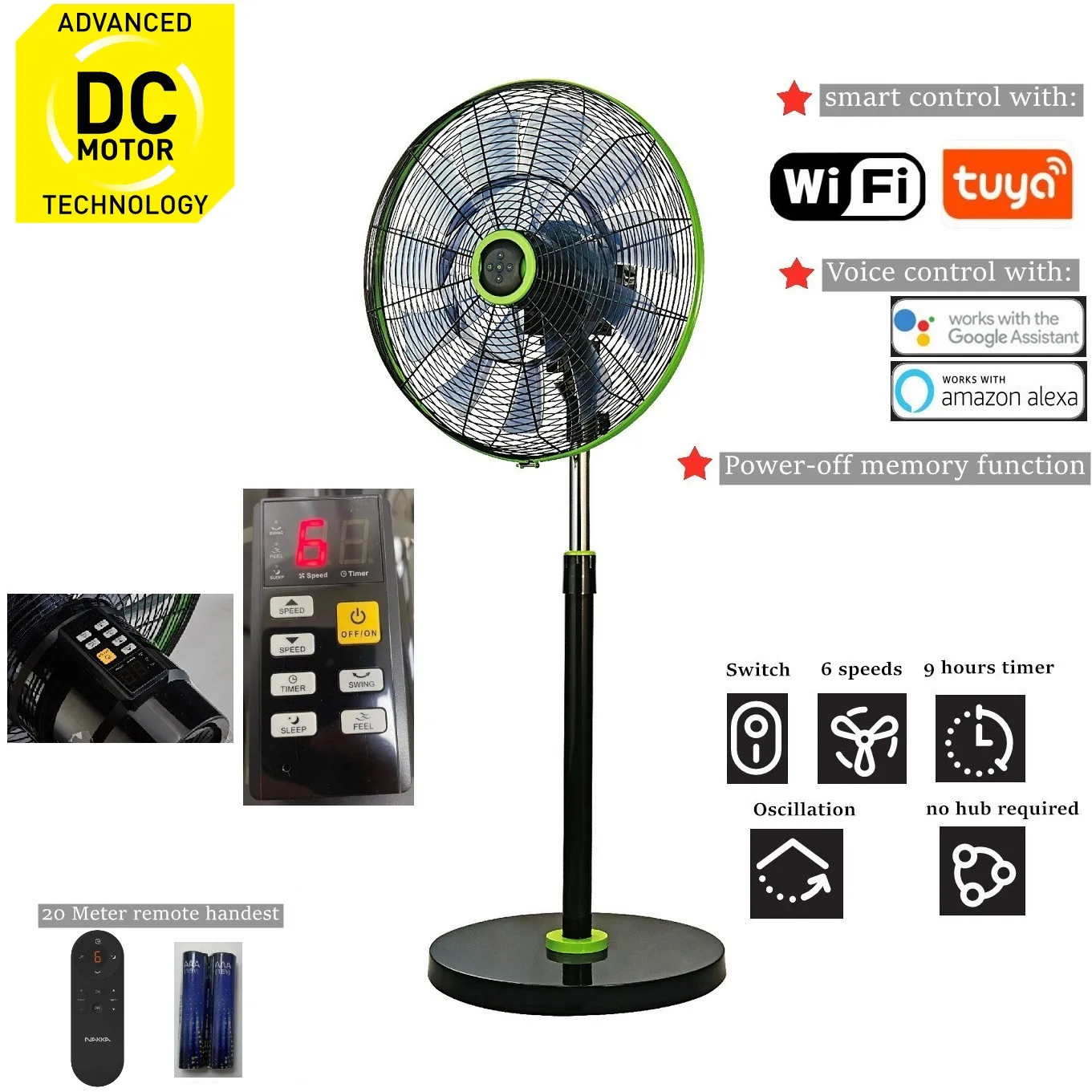

Product Name | Smart DC 18" Stand Fan Low Energy Consumption |
Manufacturer | Nakka |
Model NO. | FS45-DC17ARL |
Product Dimensions | 51.4*29.5*135 |
Size | 18 inches |
Color | Black & Green |
Material of motor | 100% Enamelled wire, ball bearing, silicon steel |
Material of fan | Coated steel, plastic |
Power Source | Electric |
Special Features | Wall switch control |
Usage | General Purpose |
Battery of controller | 2*AAA (1.5V) |
Certification | CE(EMC,LVD),RoHS, ERP, CB,SAA, GS |
Electrical Parameter | |

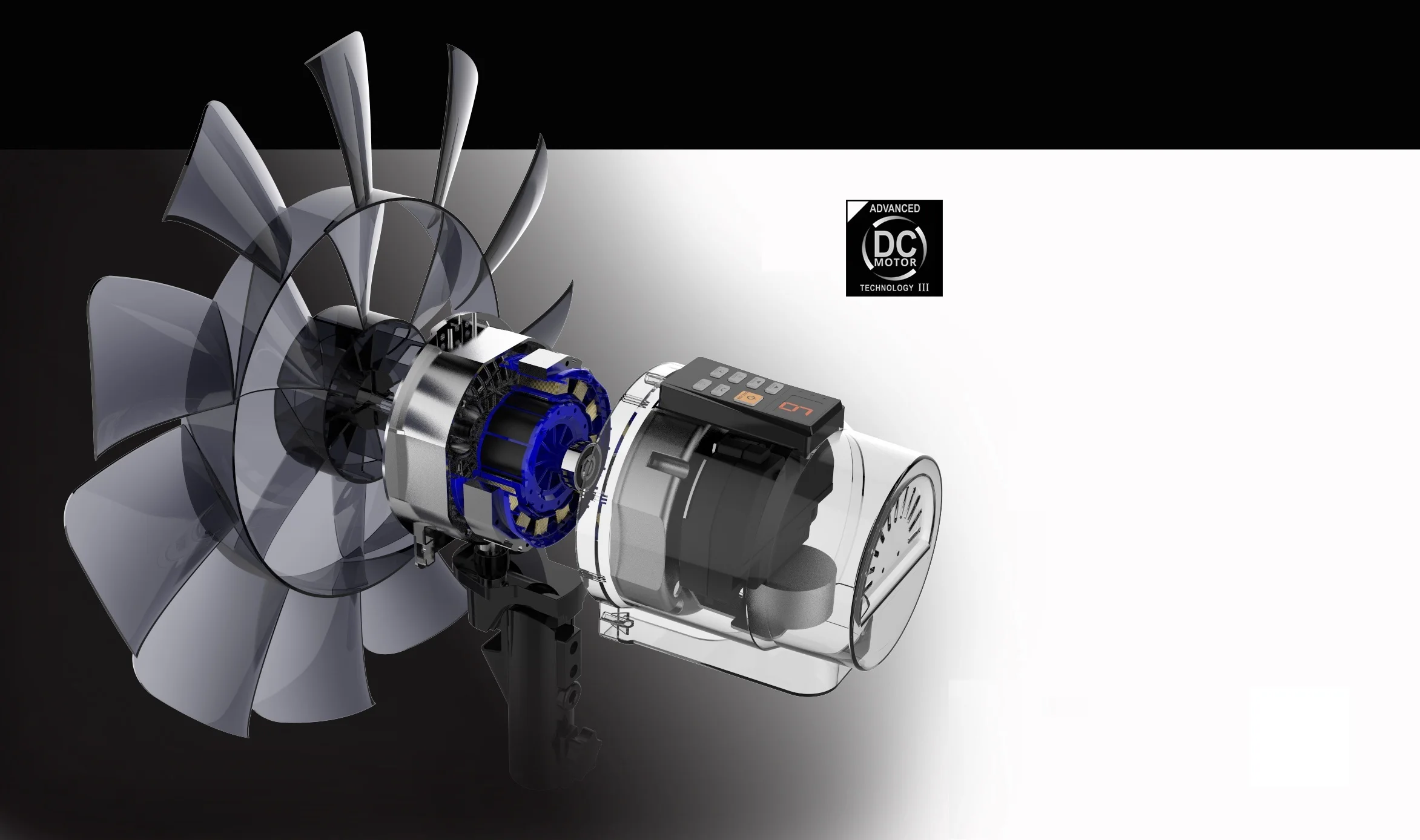

EC Motor | EC motor without Holzer brushless, High performance, Fully sealed, Brushless, 6 speeds, 9 hours timer |
Input | 120 Volts, 60Hz |
220-240 Volts,50-60Hz, | |
Power | 3W-90W |
ERP | 1.92(m³/min)/w |
Speed | minimum RPM=200r/min, maximum RPM=850r/min |
Air Flow Capacity | 5991 Cubic Feet Per Minute |
Remote Control | 433Hz radio remote control, with learning function |
Performance | |
Grill | 18 inch 12 lines strong grill with green frame (pass the finger testing ) |
Blade | 18 inch 18 blades design, noise 56dB |
Rod | adjustable rod, diameter is 42mm ( the height of the fan is 135cm) |
Base | 3.5kg plastic pedestal (can past 10" ramp testing) |
Power cord | 3*0.5mm 100% copper power line( The leakage length of the power line is 1.8m) |
Plug | Optional |
Packing info and MOQ | |
Packing size | 72*19*52.5 cm , One box one fan ( one 40HQ can load about 956pcs) |
Net Weight | 9.7kg |
Gross Weight | 11.6kg |
HS Code | 8414519200 |
MOQ | MOQ is 50 pcs (Nakka brand name), MOQ is 300pcs ( OEM customer's brand name) |
Company Profile
Guangdong Shunde NAKKA Environmental Appliance Technology Co., Ltd. is a manufacturing enterprise that focuses on production and development of high technology smart appliances, primarily with household fans, commercial fans, industrial fans and ventilation fans.With a quality oriented attitude, innovative and pragmatic spirit of research and development within the Research and Development team our company has successfully developed and patented a DC (Direct Currency) motor fan to be an industry leader.

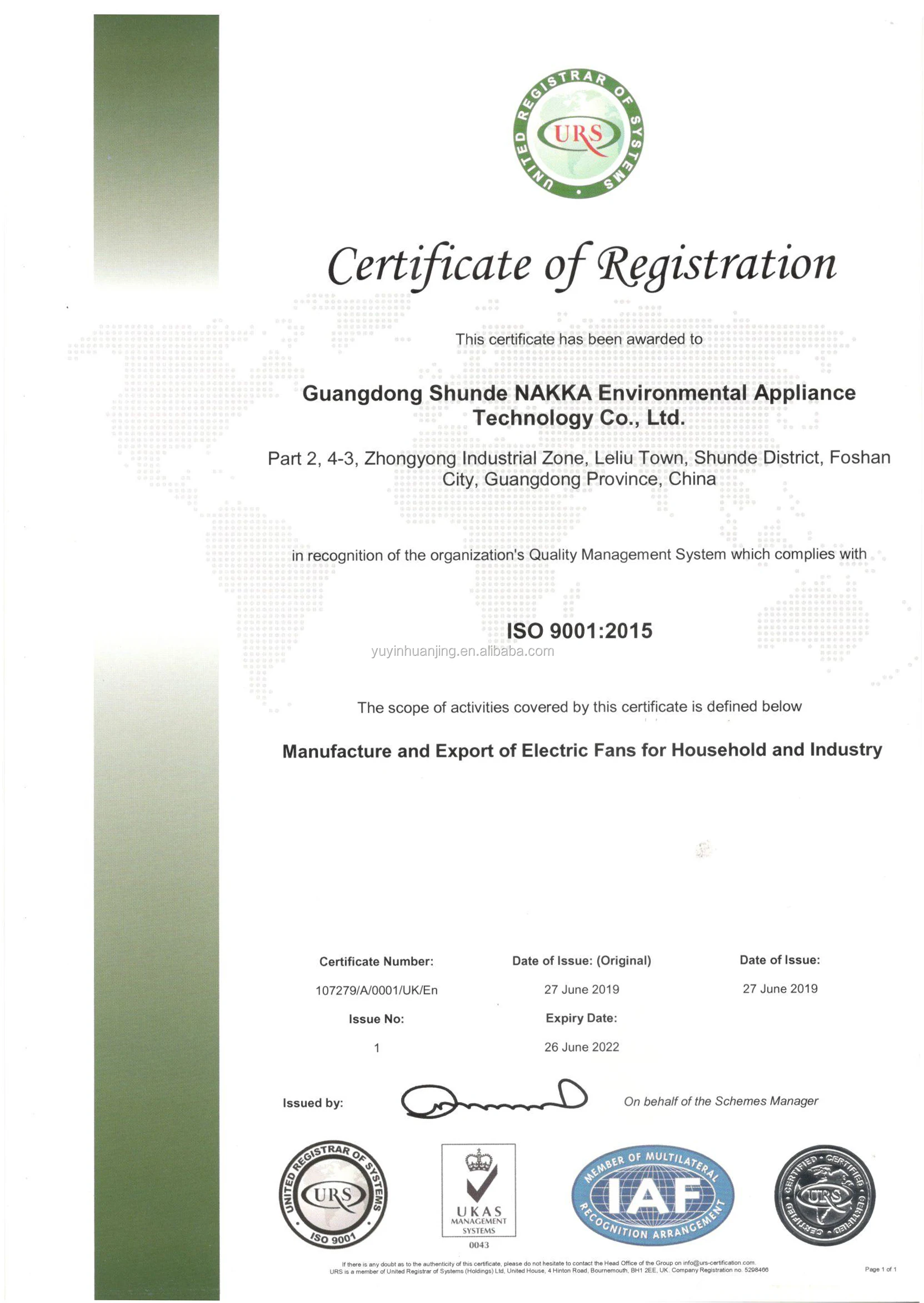

NAKKA establish a sound quality assurance system. We get ISO9001 international quality management system qualification. Nakka products have passed the identification of CE, CB, RoHS, ERP GS, and CCC.

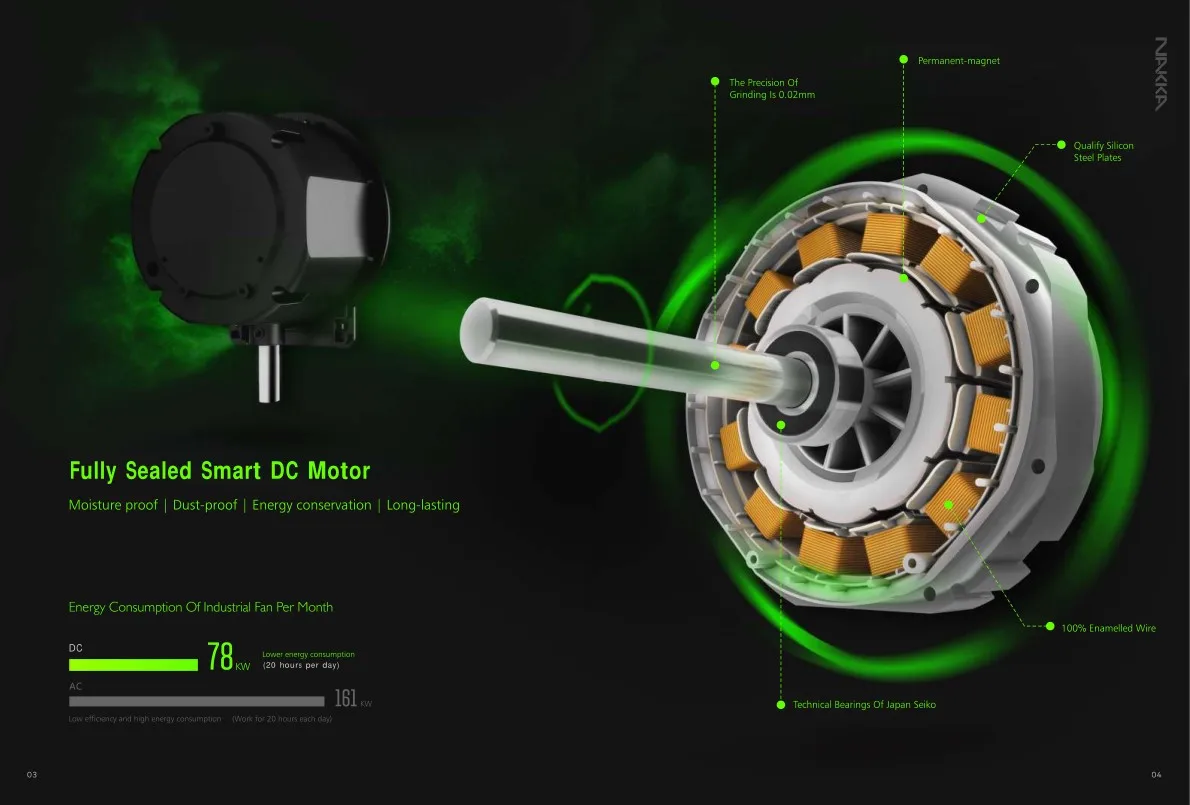

What makes this DC motor unique is it is
What makes this DC motor unique is it is
1. more energy efficient
2. low noise
3. smooth operation
which allows NAKKA products to last longer than other electric fans.

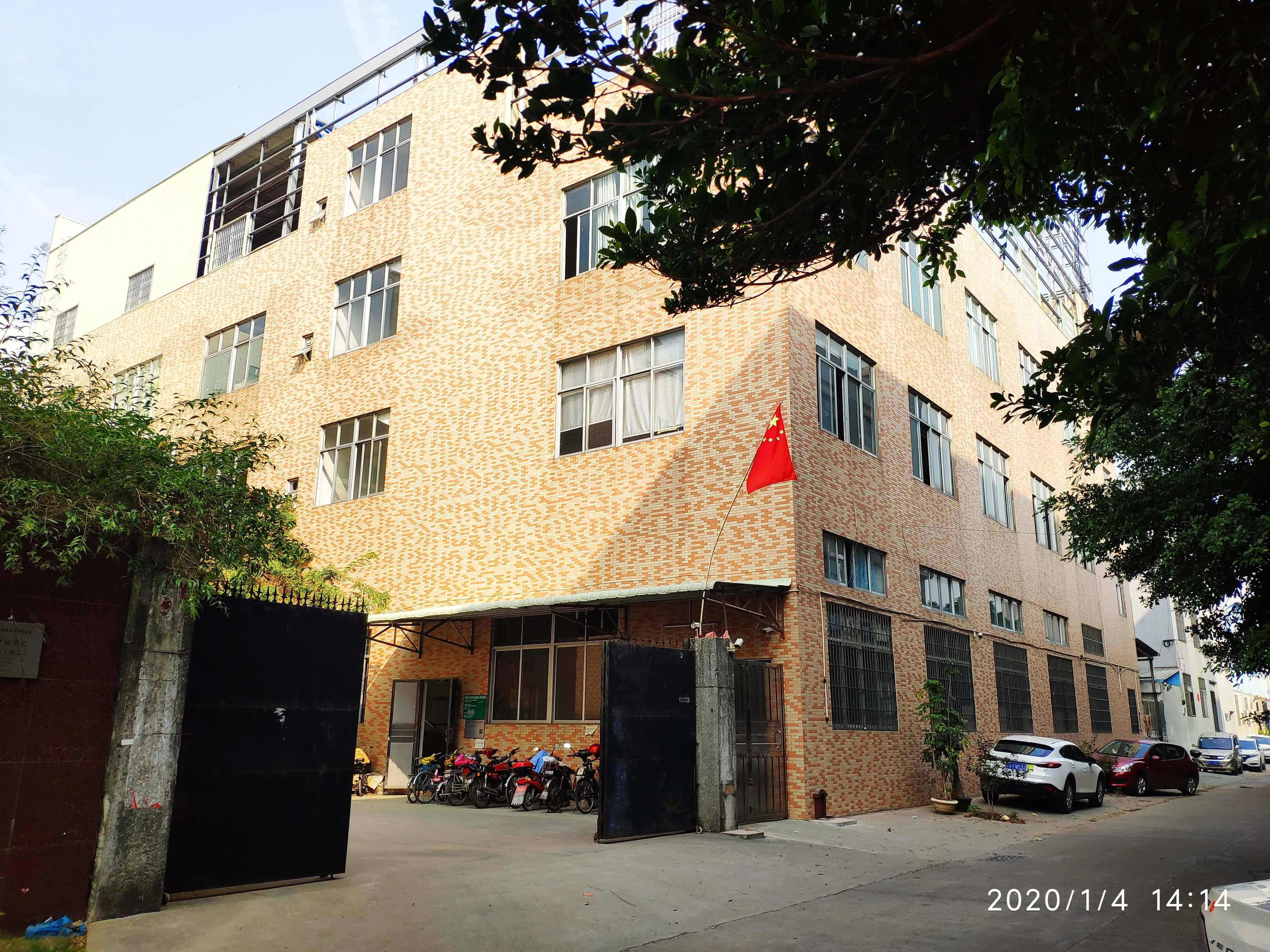

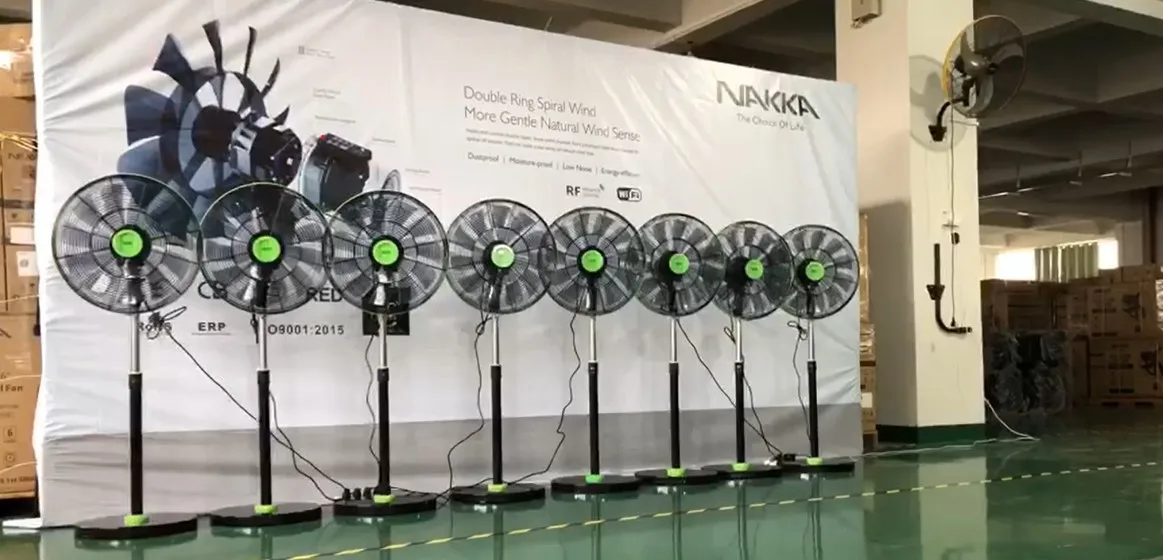

Workshop

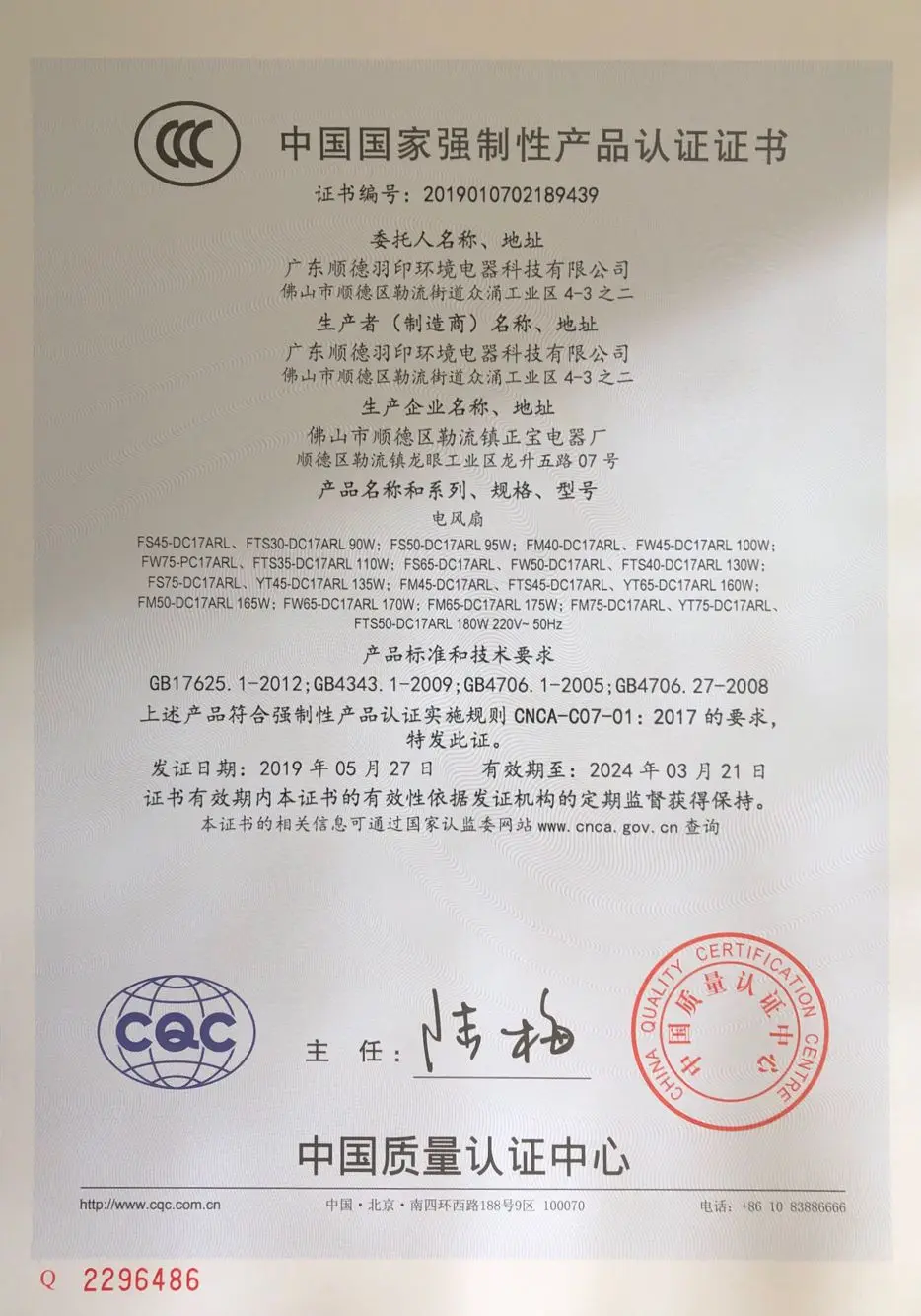

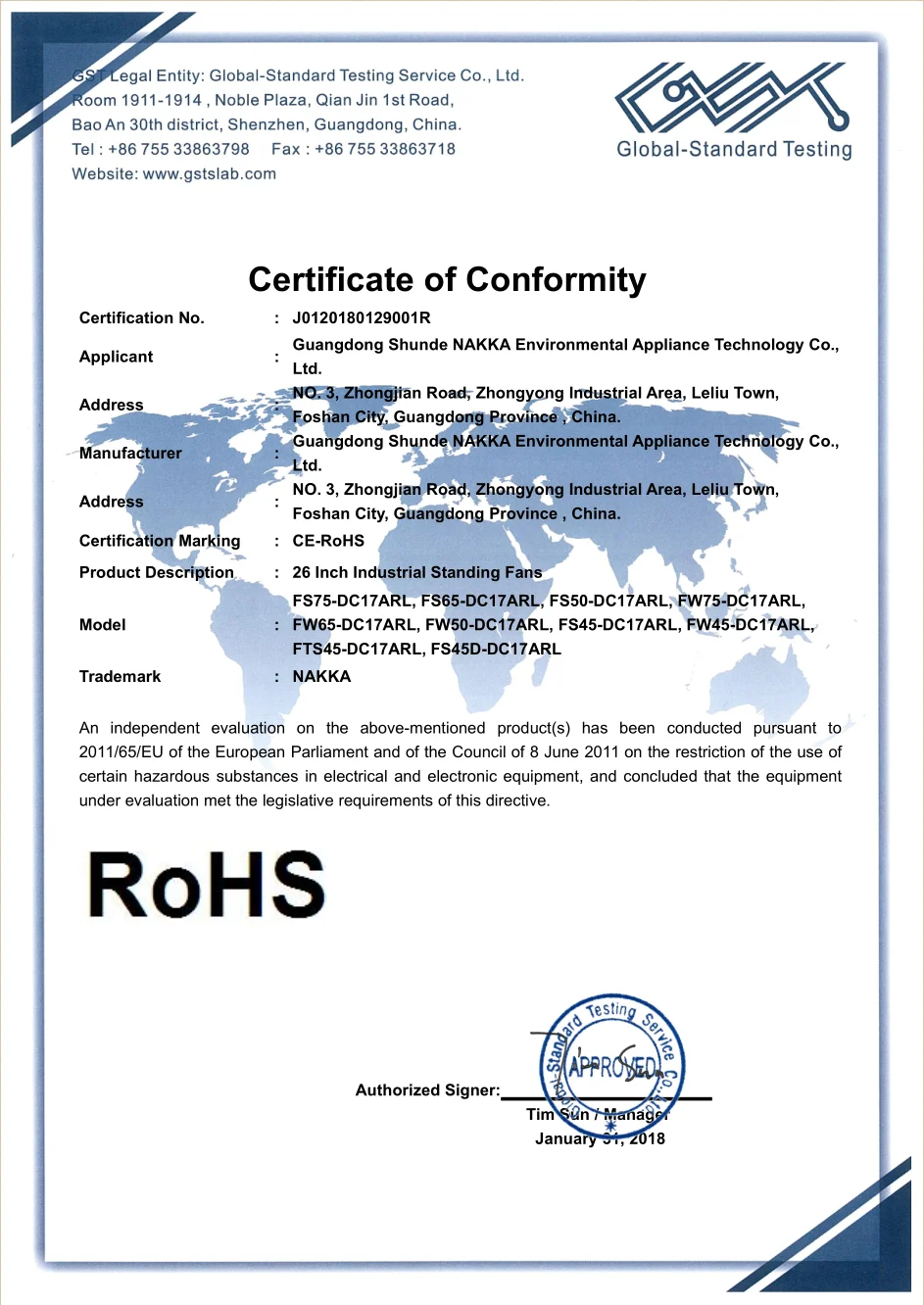

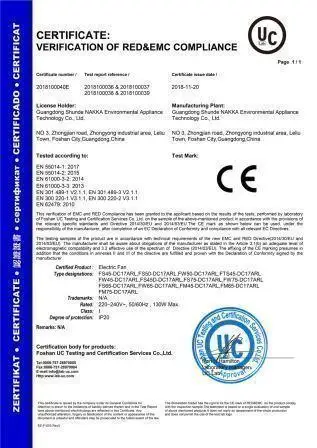

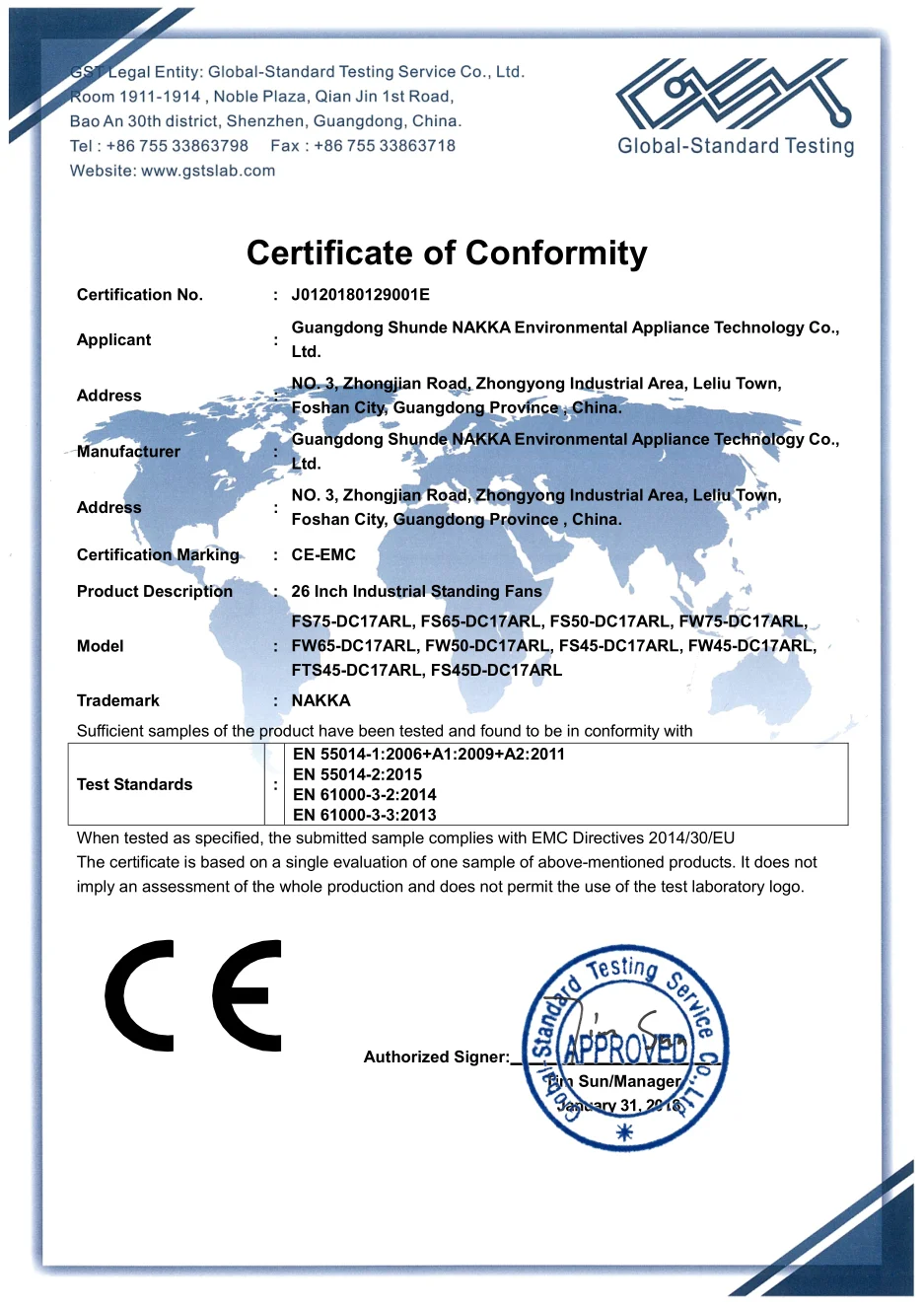

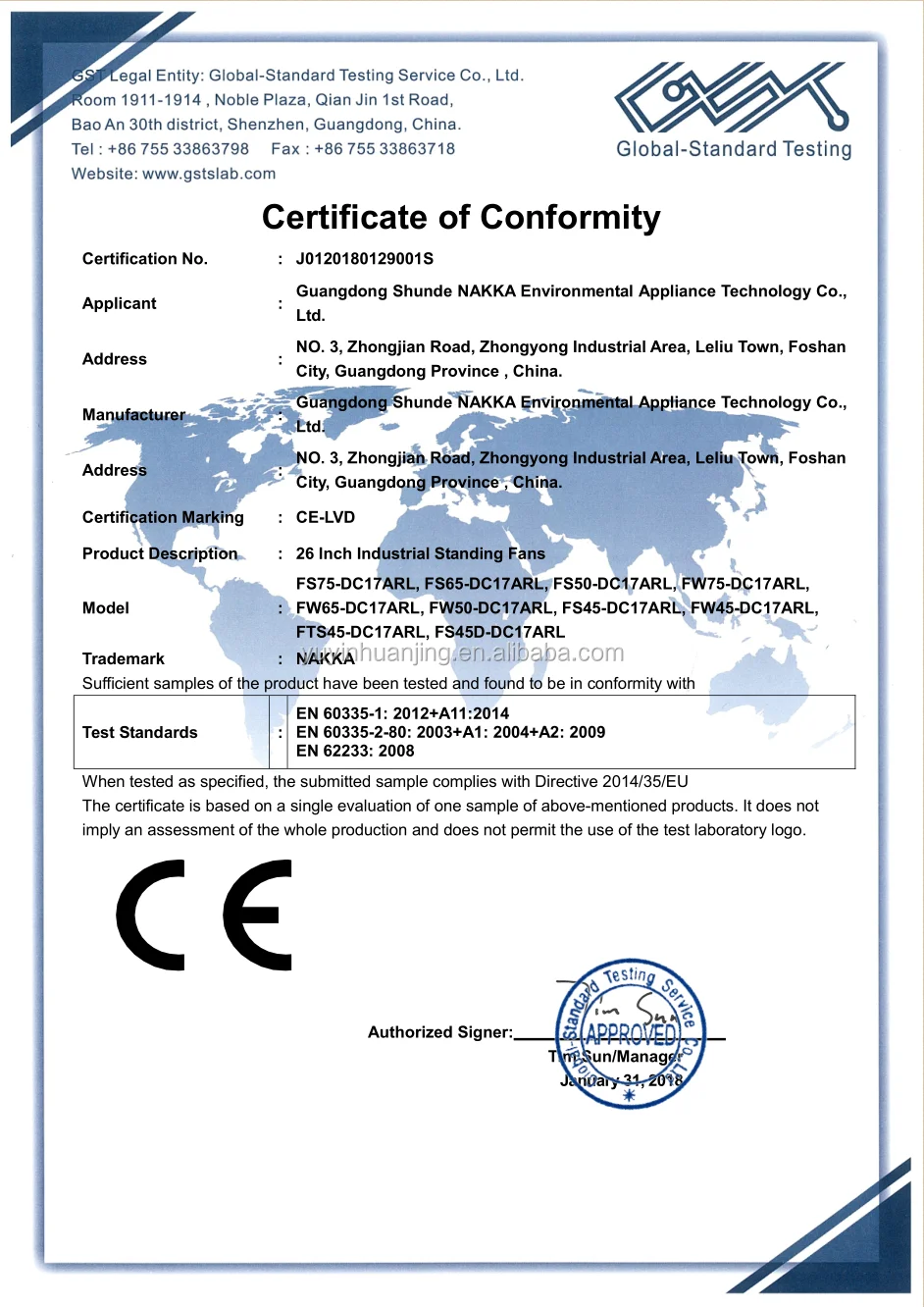

Certifications
